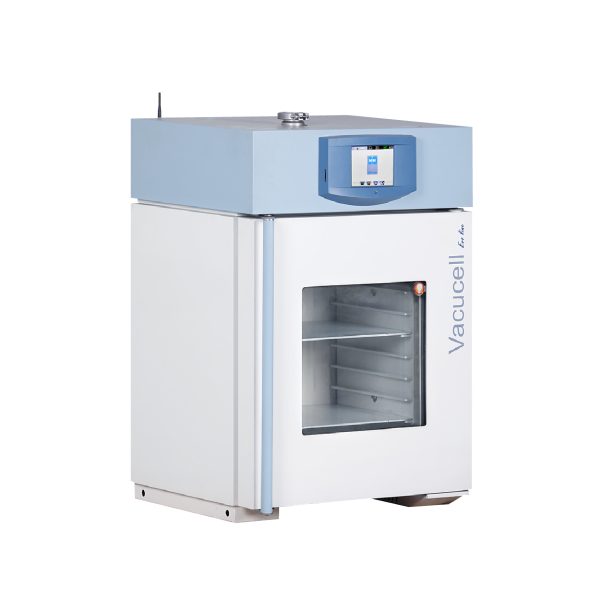

VACUCELL 55

Name: Vacuum Drying Laboratory Ovens VACUCELL 55
SKU: 34276
Availability: InStock

Ovens with Heat Distribution in Vacuum or Inert Gas

Type ECO Line MC000218

Type EVO Line MC001659

Temperature sensitive, easy decomposable or oxidative materials can be dried very tenderly in VACUCELL^® vacuum drying ovens, where there is the opportunity of extrusion of air by inert gas. Also complicated components with hardly accessible hollow spaces are drying quickly and effectively in VACUCELL^® ovens. Ideal for drying of samples to constant weight. Special application of the device is possible mainly in the fields of plastics processing, pharmaceutical, chemical, electro technical and other industries.

fast, gentle, environmentally friendly – laboratory drying oven for higher demands
chamber volume 55 litres
temperature range from 5°C above ambient to 200°C
characterized by noiseless operation and gentle sample heating in the chamber, offering high-quality and safe heating and drying of samples up to constant weight
high operation comfort, precise temperature control and short chamber temperature equalization times after the door opening
suitable for perfect drying of thermally labile and oxidation sensitive materials, complicated shapes, drying of samples to constant weight, etc. in vacuum
wide selection of optional equipment and accessories (e.g. supplementing the “Vacustation” base with the option of installing a selected type of a vacuum pump,…)

Specification

Interior of stainless steel material No. 1.4571

volume	55 l
depth	320 mm
width	400 mm
height	430 mm

Tray

number	2 pcs
racks max.	7 pcs

Minimal Shelves distance

height

43 mm

Usefull dim. of shelf

width × depths

340 × 296 mm

External dimensions (including door and handle)

depth	560 mm
width	620 mm
heights(incl. foots)	910 mm

Package dimensions

depth	730 mm
width	760 mm
height (incl. palette)	1050 mm

Weight

brut	111 kg
net	98 kg

Working temperature (regulation start)

from 5 °C over ambient temp to

200 °C

Temp. deviations acc. to DIN 12 880 Part 2 from working temp – Al shelves pressure 5–10 mbar**

in time to:	0,4 ± °C
in space, temperature 100 °C do:	2 ± °C
in space, temperature 200 °C do:	6 ± °C

Temp. deviations acc. to DIN 12 880 Part 2 from working temp – ss shelves pressure 5–10 mbar**

i time to:	1 ± °C
in space, temperature 100 °C do:	10 ± °C
in space, temperature 200 °C do:	23 ± °C

Time of rise onto 98 % voltage 230 V – (Al shelves pressure 5–10 mbar)

onto temp 100 °C	65 min
onto temp 200 °C	85 min

Time of rise onto 98 % voltage 230 V – (shelves pressure 5–10 mbar)

onto temp 100 °C	140 min
onto temp 200 °C	180 min

Heat radiation

at 100 °C	260 W
at 200 °C	520 W

Vacuum connection

feedthrough needle valve for inert gas or air	8 mm
measuring acces (ISO KF)	40 mm
vacuum connection measuring DN (ISO KF) Including hose end Ø 12 mm	16 mm

Electric parameters – mains 50/60 Hz

nominal voltage	230 V
mains 50/60 Hz	1,2 kW
current	5,2 A
input in stand by mode	5 W

Max. permissible load of the shelves

inside the oven	45 kg/oven
per shelves	25 kg

Download Brochure

Available Options

Thumbnail	SKU	Description	Stock	Price	Quantity
	MC000924	Vacucell 55 - Standard Blue Line, Vacuum Oven, 55L		RM20,448.00	Vacuum Drying Laboratory Ovens VACUCELL 55 quantity
	MC000218	Vacucell 55 ECO		RM45,883.00	Vacuum Drying Laboratory Ovens VACUCELL 55 quantity
