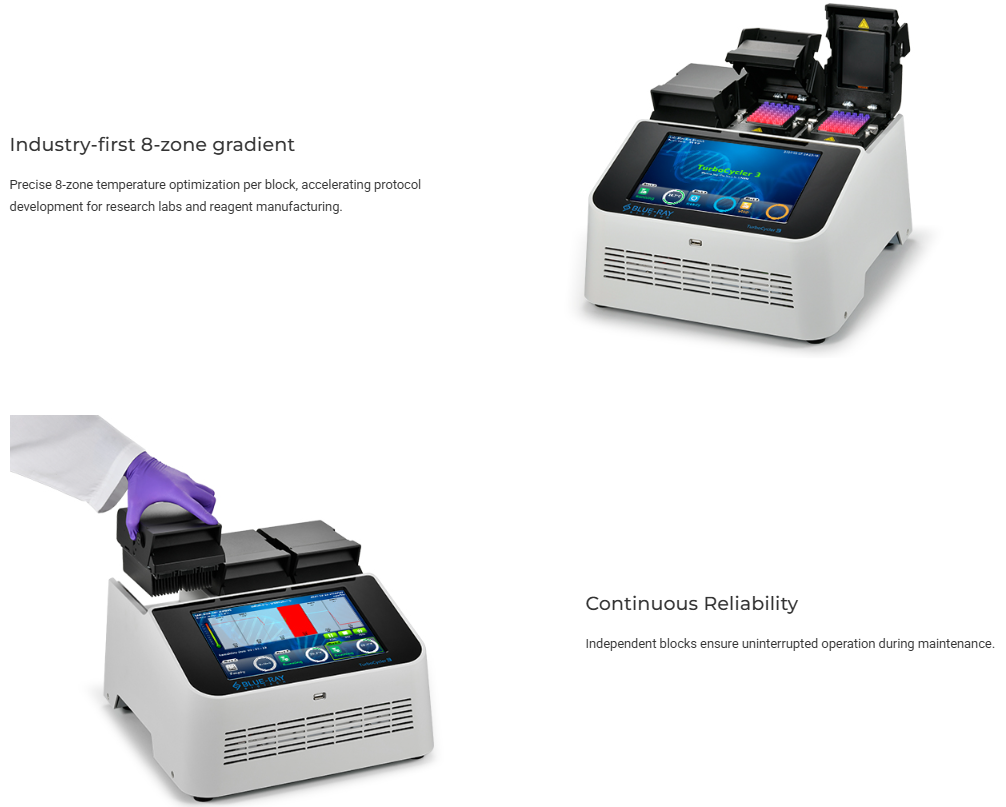

Industry-first 8-zone gradient

Precise 8-zone temperature optimization per block, accelerating protocol development for research labs and reagent manufacturing.

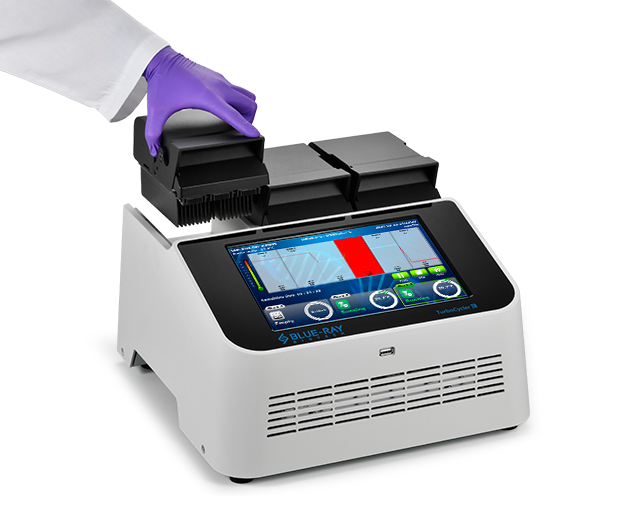

Continuous Reliability

Independent blocks ensure uninterrupted operation during maintenance.

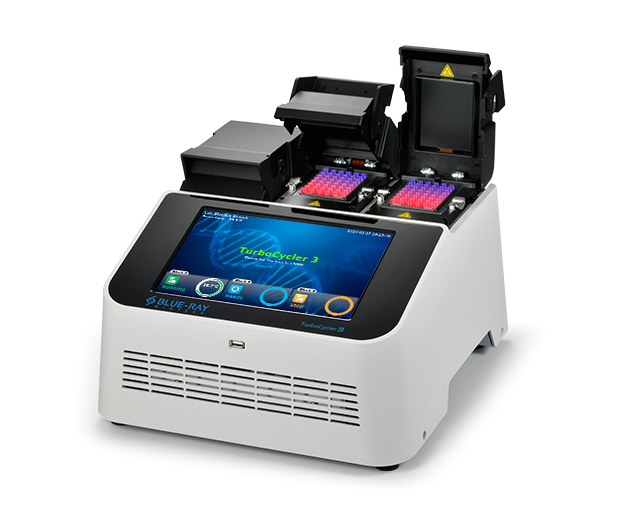

TurboCycler 3 Thermal Cycler TCTT-4810

High-Throughput Triple-Block Gradient PCR Thermal Cycler

TurboCycler 3 stands out as the ultimate high-throughput PCR thermal cycler in its class. It has unrivaled flexibility and the capacity to run three distinct PCR protocols at the same time while handling 3 x 48 samples. Fast gradient optimization and advanced ramp rate control are perfectly tailored to meet specific assay requirements. These features unite to turbocharge your productivity and efficiency.

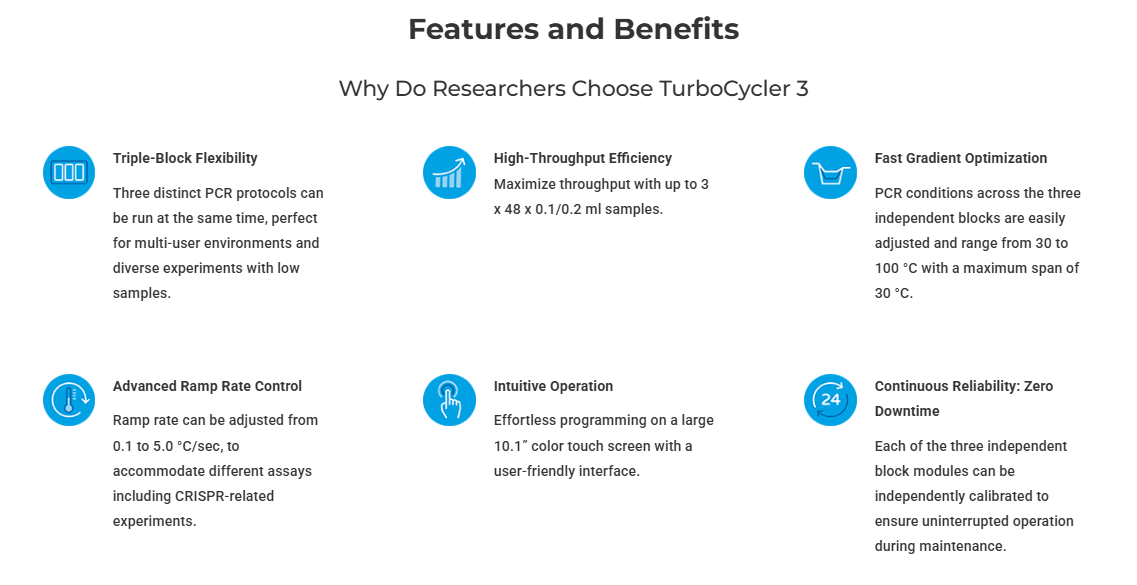

Features and Benefits

Triple-Block Flexibility

Three distinct PCR protocols can be run at the same time, perfect for multi-user environments and diverse experiments with low samples

High-Throughput Efficiency

Maximize throughput with up to 3 x 48 x 0.1/0.2 ml samples

Fast Gradient Optimization

PCR conditions across the three independent blocks are easily adjusted and range from 30 to 100 ?C with a maximum span of 30 ?C

Advanced Ramp Rate Control

Ramp rate can be adjusted from 0.1 to 5.0 ?C/sec, to accommodate different assays including CRISPR-related experiments

Intuitive Operation

Effortless programming on a large 10.1? color touch screen with a user-friendly interface

Continuous Reliability: Zero Downtime

Each of the three independent block modules can be independently calibrated to ensure uninterrupted operation during maintenance

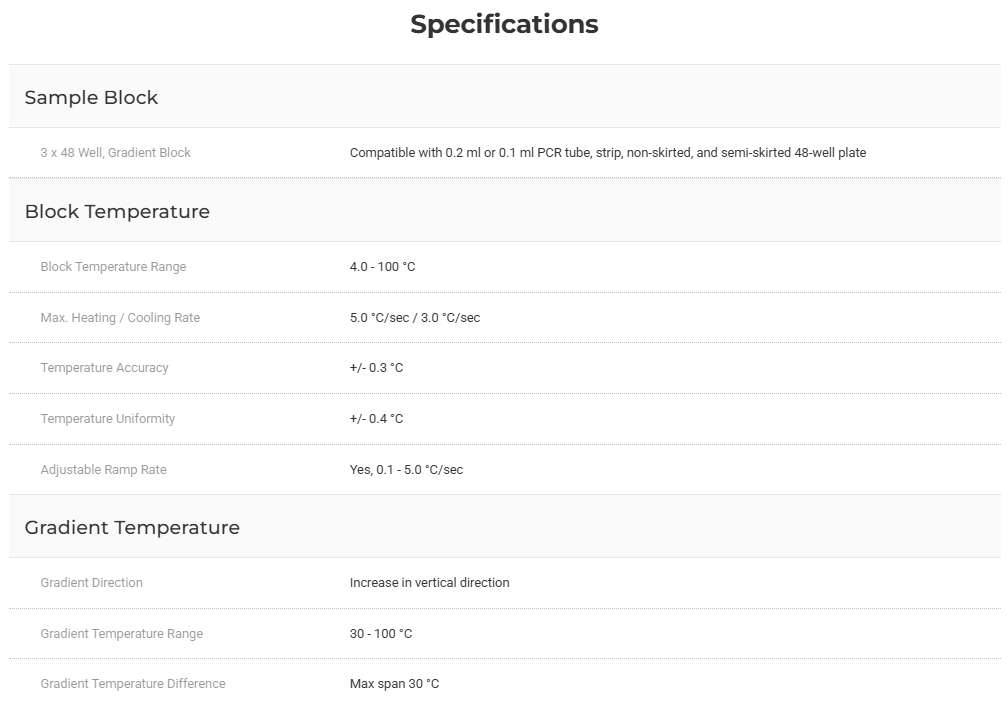

Specifications

Sample Block

• 3 x 48 Well, Gradient Block : Compatible with 0.2 ml or 0.1 ml PCR tube, strip, non-skirted, and semi-skirted 48-well plate

Block Temperature

• Block Temperature Range : 4.0 – 100 °C

• Max. Heating / Cooling Rate : 5.0 °C/sec / 3.0 °C/sec

• Temperature Accuracy : +/- 0.3 °C

• Temperature Uniformity : +/- 0.4 °C

• Adjustable Ramp Rate : Yes, 0.1 – 5.0 °C/sec

Gradient Temperature

• Gradient Direction : Increase in vertical direction

• Gradient Temperature Range : 30 – 100 °C

• Gradient Temperature Difference : Max span 30 °C

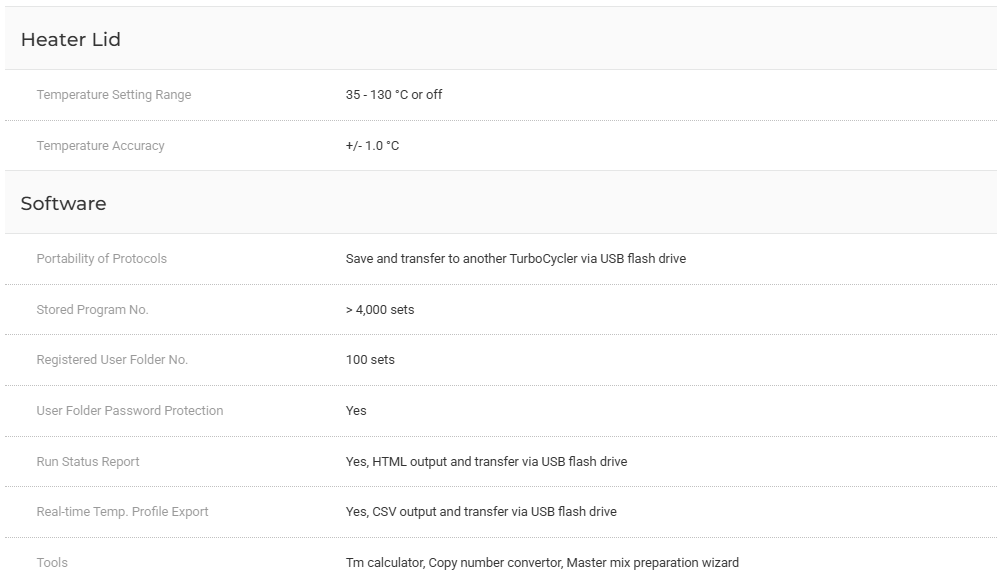

Heater Lid

• Temperature Setting Range : 35 – 130 °C or off

• Temperature Accuracy : +/- 1.0 °C

Software

• Portability of Protocols : Save and transfer to another TurboCycler via USB flash drive

• Stored Program No. : > 4000 sets

• Registered User Folder No. : 100 sets

• User Folder Password Protection : Yes

• Run Status Report : Yes, HTML output and transfer via USB flash drive

• Real-time Temp. Profile Export : Yes, CSV output and transfer via USB flash drive

• Tools : Tm calculator, Copy number convertor, Master mix preparation wizard

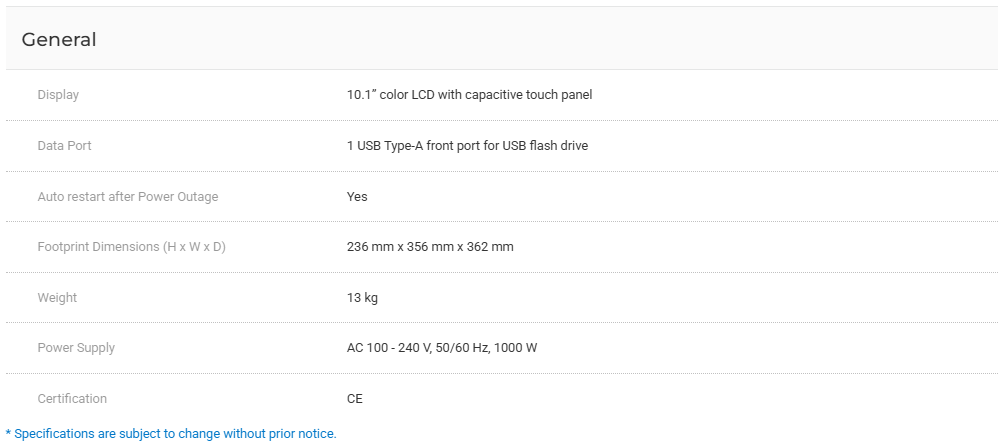

General

• Display : 10.1” color LCD with capacitive touch panel

• Data Port : 1 USB Type-A front port for USB flash drive

• Auto restart after Power Outage : Yes

• Footprint Dimensions (H x W x D) : 236 mm x 356 mm x 362 mm

• Weight : 13 kg

• Power Supply : AC 100 – 240 V, 50/60 Hz, 1000 W

• Certification : CE
