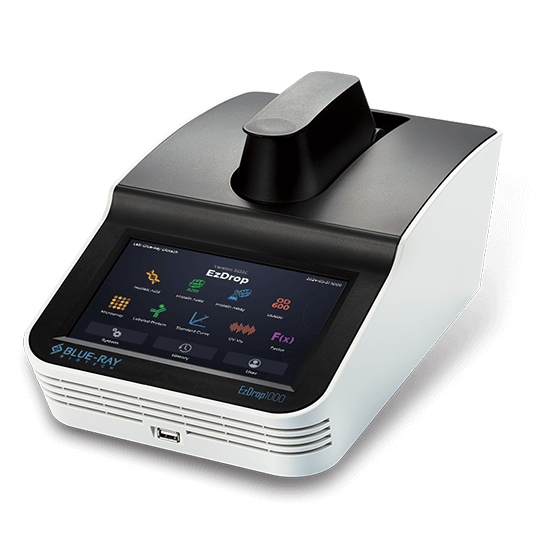

EzDrop 1000 Micro-Volume Spectrophotometer

Measures Sample in 3 seconds

EzDrop 1000 Micro-Volume Spectrophotometer

UV-VIS spectroscopy is a widely accepted technique for the characterization of molecules in life science research and discovery. Not only does it provide fast measurement on a micro-volume scale, it also offers accuracy in terms of wavelength and nanometer absorbance range.



The EzDrop 1000 Micro-Volume UV Vis Spectrophotometer is a powerful tool to enhance your research efficiency. With its Nano hydrophobic coated sample window, it allows for dynamic full-spectrum 190-1000 nm absorbance measurement with high accuracy within just 3 seconds.

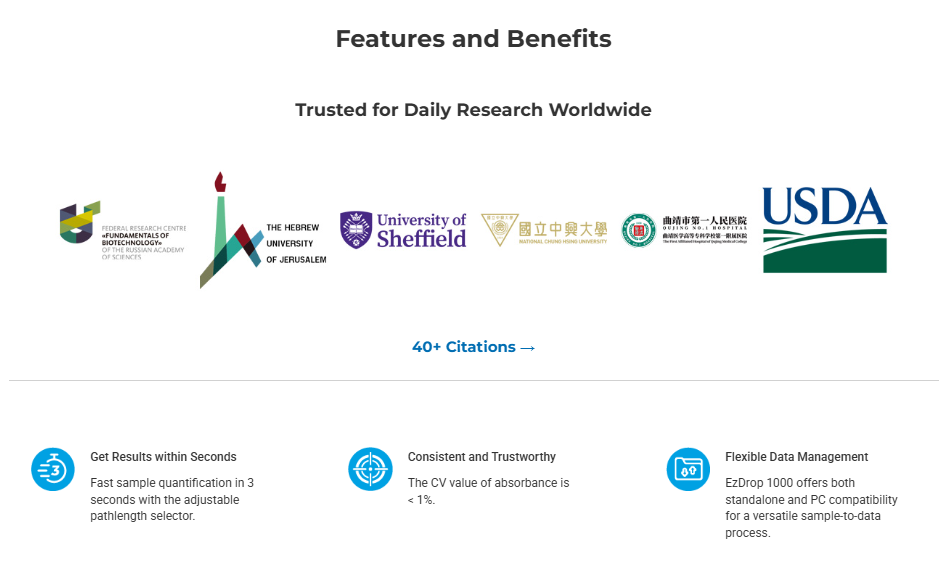

Features and Benefits

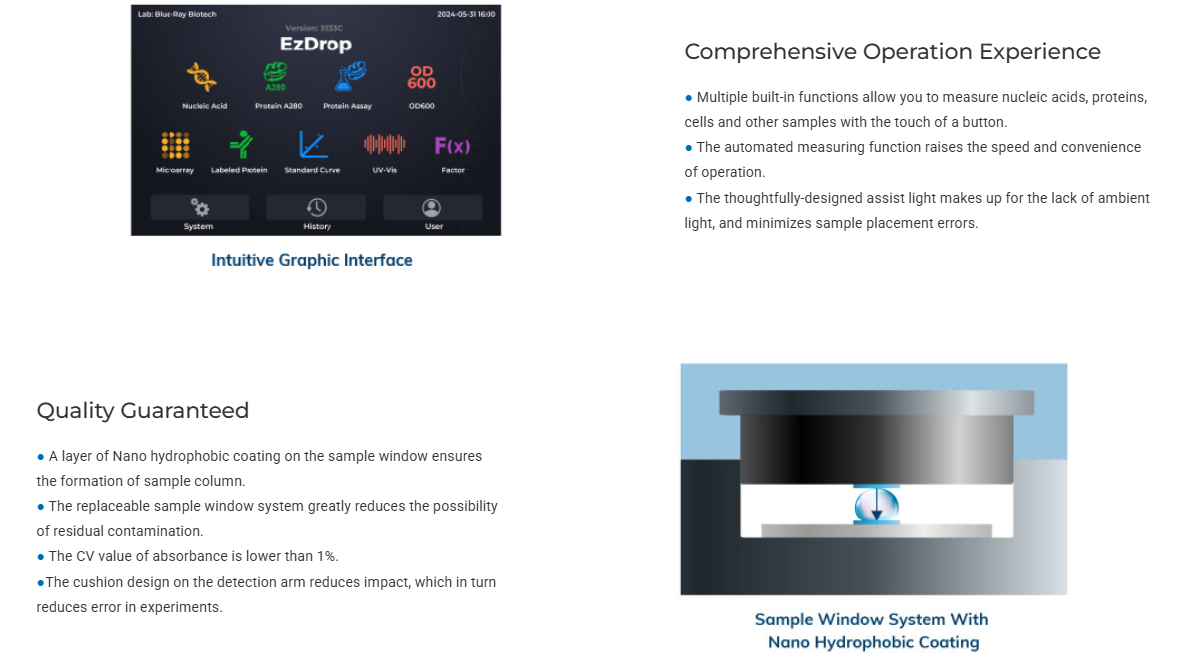

Comprehensive Operation Experience

● The built-in intuitive graphic interface is easy to use, and can be operated without extra computing equipment, saving space in the laboratory.
● Multiple built-in functions allow you to measure nucleic acids, proteins, cells and other samples with the touch of a button.
● The automated measuring function raises the speed and convenience of operation.
● The thoughtfully-designed assist light makes up for the lack of ambient light, and minimizes sample placement errors.

Quality Guaranteed

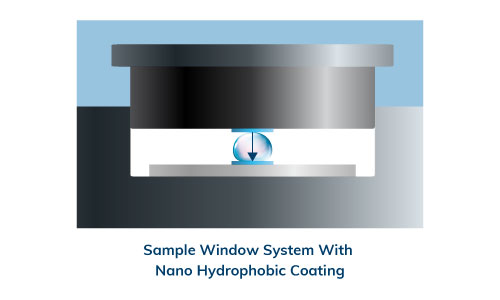

● A layer of Nano hydrophobic coating on the sample window ensures the formation of sample column.
● The replaceable sample window system greatly reduces the possibility of residual contamination.
● The CV value of absorbance is > 1
● The cushion design on the detection arm reduces impact, which in turn reduces error in experiments.

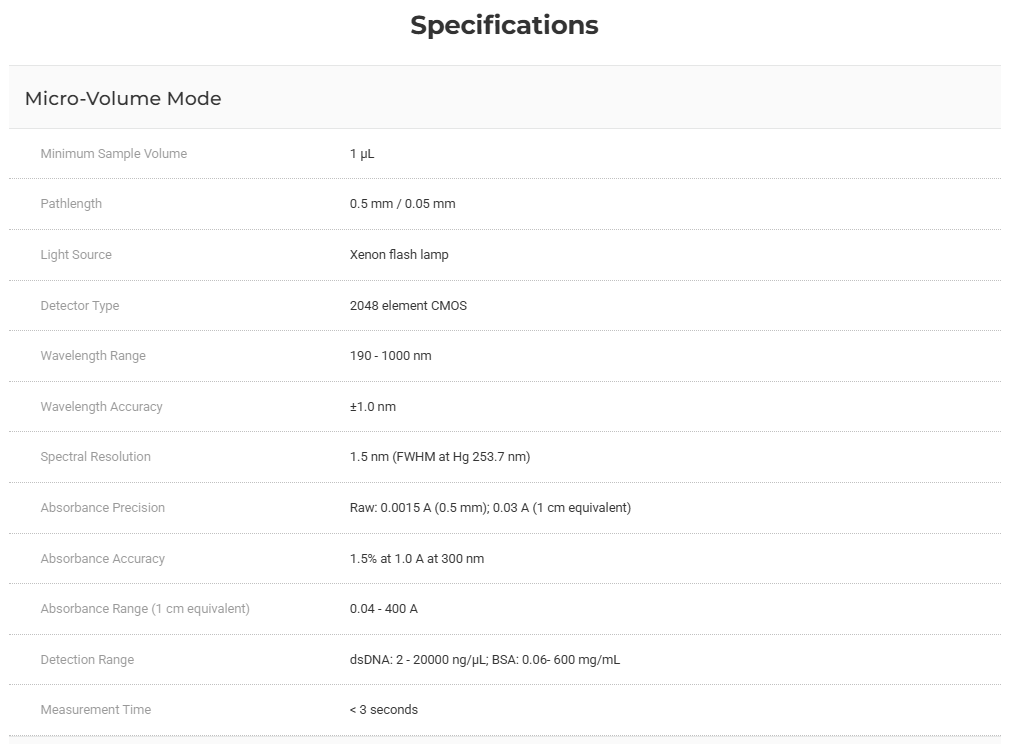

Specifications

Optics Information

  • Sample Volume
  • 1 µL minimum volume
  • Sample Number
  • 1
  • Pathlength
  • 0.5 mm / 0.05 mm
  • Light Source
  • Pulsed Xenon flash lamp
  • Detector Type
  • 2048 element CMOS
  • Wavelength Range
  • 190 – 1000 nm
  • Bandwidth
  • 1.3 nm
  • Wavelength Accuracy
  • 1.0 nm
  • Spectral Resolution
  • 1.5 nm (FWHM at Hg 253.7 nm)
  • Absorbance Precision (raw)
  • 0.0015 A (0.5 mm)
  • Absorbance Precision
  • 0.03 A (1 cm equivalent)
  • Absorbance Accuracy
  • 3.0% at 0.75 A at 300 nm
  • Absorbance Range (1 cm equivalent)
  • 0 (0.04) – 400 A
  • Detection Range
  • dsDNA: 2 – 20000 ng/µL; BSA: 0.06- 600 mg/mL
  • Sample Surface Material of Construction (Lower and Upper)
  • Stainless steel and quartz window with hydrophobic treatment
  • Measurement Time
  • < 3 sec

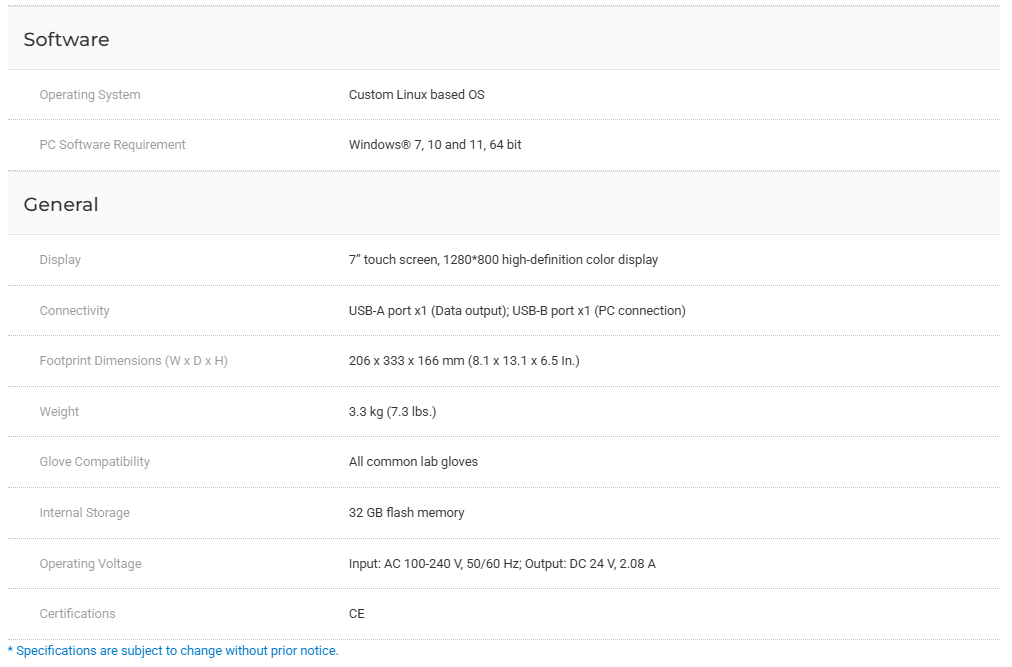

Software

  • Operating System
  • Custom Linux based OS
  • Registered User Folder No.
  • > 500 sets
  • User Folder Password Protection
  • Yes

General

  • Display
  • 7” color LCD with capacitive touch panel
  • Data Port
  • 1 USB Type-A front port for USB flash drive
  • Footprint Dimensions (W x D x H)
  • 206 x 333 x 166 mm
  • Weight
  • 3.5 kg ( 7.8 lb)
  • Glove Compatibility
  • All common lab gloves
  • Internal Storage
  • 32 GB flash memory
  • Power Adapter
  • Input: AC 100-240 V, 50/60 Hz; Output: DC 24 V, 2.08 A
  • Certifications
  • CE, RoHS
