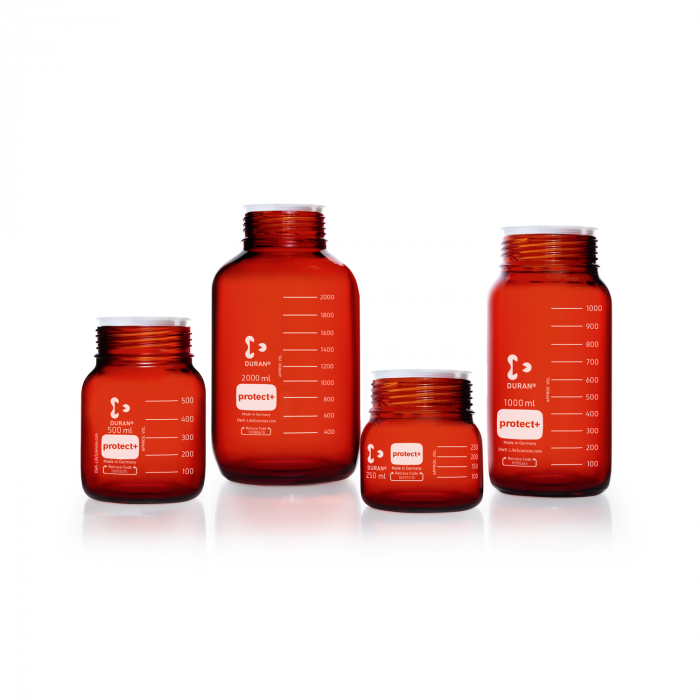

DURAN Protect+ amber GLS 80 laboratory glass bottles in multiple sizes for chemical sample storage
Laboratory bottle DURAN GLS 80 Wide Neck Amber 250 mL, protect+ plastic safety coatedRM366.00

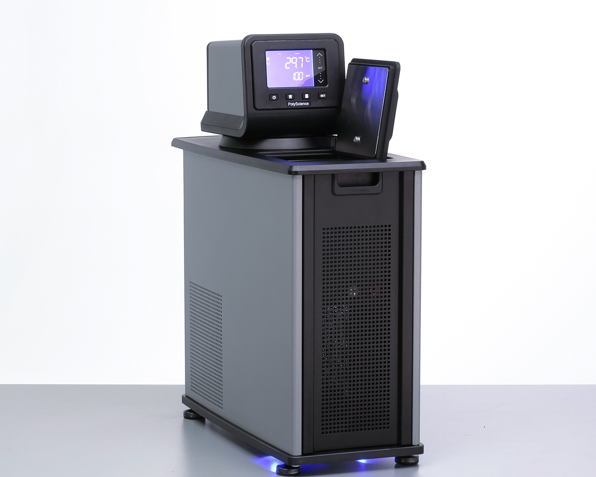

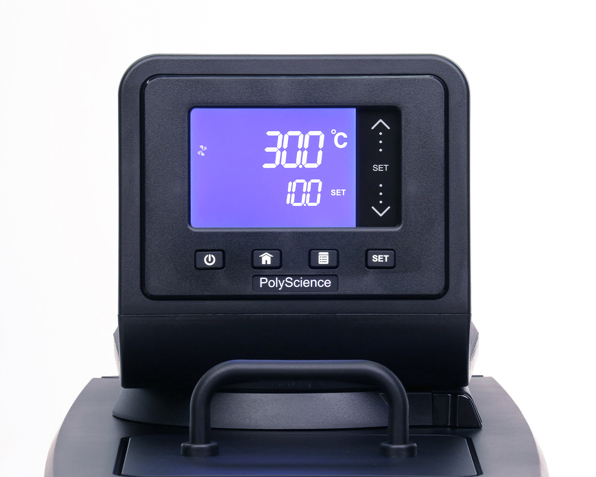

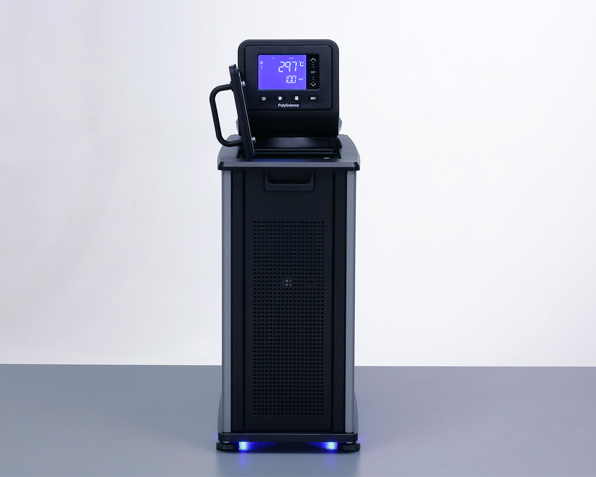

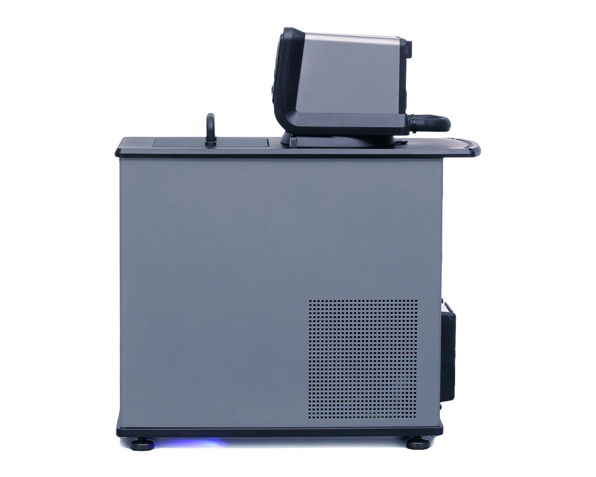

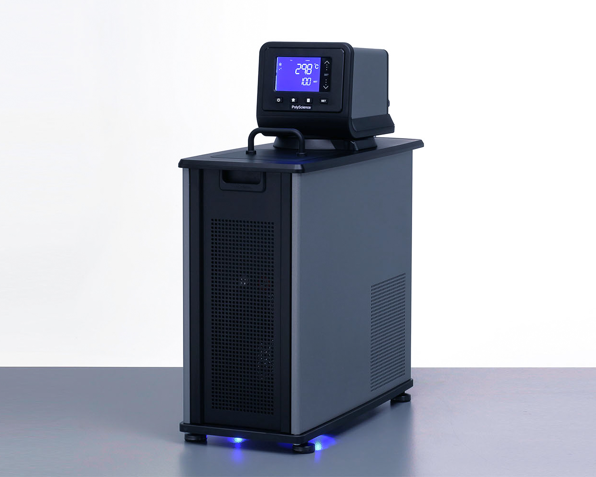

Refrigerated Circulator 7 Liter, SD, -20° C
Refrigerated Circulator 7 Liter, SD, -20° C - Image 2
Refrigerated Circulator 7 Liter, SD, -20° C - Image 3
Refrigerated Circulator 7 Liter, SD, -20° C - Image 4
Refrigerated Circulator 7 Liter, SD, -20° C - Image 5

Refrigerated Circulator 7 Liter, SD, -20° C

RM30,715.00

SKU: N/A Categories: , , Brand:

Refrigerated Circulator 7 Liter, SD, -20° C

Key Specifications

Description

-20, 7 L Ref. Circulator

Controller Type
Standard Digital
Display
3.75″ Touch-Pad LCD
Connectivity
RS232
Swivel 180 Rotating Controller
Yes
Working Temperature Range °C
-20° to 170°
Temperature Stability °C
±0.04°
Fluid Optimization/Specific Heat Tuning
Automatic
Temperature Calibration Capability
1-point
Working Access (L x W x D) (cm)
15.7 x 14.2 x 12.7 cm
Pump Type
Pressure
Flammability Class (DIN 12876-1)
I (NFL)

Key Features

  • Large, universal icon and English display
  • Swivel 180™ Rotating Controller
  • On-board connectivity: RS-232 serial output
  • On-screen prompts
  • Automatic performance optimization
  • Single-point calibration capability

Common Specifications

Working Temperature Range °C-20° to 170°
Working Temperature Range °F-4° to 338°
Flammability Class (DIN 12876-1)I (NFL)
Nominal Cooling Capacity @ +20C (W)200
Reservoir Capacity (gallons)1.85
Reservoir Capacity (liters)7
Reservoir/Tank MaterialStainless Steel
Working Temperature Range °F-4° to 338°
Working Temperature Range °C-20° to 170°
Nominal Cooling Capacity @ +20C (W)200
Reservoir Capacity (gallons)1.85
Reservoir Capacity (liters)7
Reservoir/Tank MaterialStainless Steel
Reservoir CoverIncluded
DuraTopYes
Working Access (L x W x D) (inches)6.18 x 5.59 x 5 in
Working Access (L x W x D) (cm)15.7 x 14.2 x 12.7 cm
Temperature Stability °C±0.04°
Display3.75″ Touch-Pad LCD
Display Resolution (Set)0.1
Display Resolution (Read)0.1
Pump TypePressure
Pump SpeedTwo
Over-Temperature Protection / Failsafe Heater ControlYes
Low Liquid Level ProtectionYes
Reservoir DrainYes
Maximum Ambient Temperature °F95°
Maximum Ambient Temperature °C35°
Overall Dimensions (L x W x D) (inches)21.3 x 8.7 x 24.3 in
Overall Dimensions (L x W x D) (cm)54.1 x 22.1 x 61.7 cm
RefrigerantR134a
Environmental ComplianceROHS, WEEE
Shipping Weight (pounds)90.00
Shipping Weight (kilograms)40.80

50 Hz only

Maximum Pressure (psi) (50Hz)2.90
Maximum Pressure (bar) (50Hz)0.20
Maximum Pressure Flow Rate (gpm) (50Hz)2.70
Maximum Pressure Flow Rate (l/min) (50Hz)10.20
Cooling Capacity @ -20°C (W) (50hz)30
Cooling Capacity @ 0°C (W) (50hz)120
Cooling Capacity @ +20°C (W) (50hz)200
Electrical Requirements (VAC/Hz/Ph/A) (50Hz)240/50/1/12

60 Hz only

Maximum Pressure (psi) (60Hz)3.50
Maximum Pressure (bar) (60Hz)0.24
Maximum Pressure Flow Rate (gpm)  (60Hz)                                                                                            2.90
Maximum Pressure Flow Rate (l/min) (60Hz)11.00
Cooling Capacity @ -20°C (W) (60hz)30
Cooling Capacity @ 0°C (W) (60hz)120
Cooling Capacity @ +20°C (W) (60hz)200
Included Hardware (60Hz)Nylon hose adapters for 3/8″, 1/4″, and 3/16″
Heater Wattage (60hz)1100
Electrical Requirements (VAC/Hz/Ph/A) (60Hz)120/60/1/12
Regulatory Approvals (60Hz)ETL
DOWNLOAD OPERATOR'S MANUAL HERE

Available Options

ThumbnailSKUDescriptionStockPriceQuantity
PO-SD07R-20-A12ERefrigerated Circulator 7 Liter, SD, -20° CRM30,715.00
