EzDrop 1000C Micro-Volume / Cuvette Spectrophotometer

Sample Quantification in a Trice

EzDrop 1000C Micro-Volume/Cuvette Spectrophotometer helps you make the most of your precious sample and time, providing measurement results within 3 seconds. The instrument offers dual modes for micro-volume and cuvette detection, as well as an intuitive touch screen for easy operation. These features combine to meet a wide range of nucleic acid and protein quantification requirements. EzDrop 1000C can be used as a standalone unit or connected to a PC for increased flexibility in the sample-to-data process.

Features and Benefits

Get Results within Seconds

Fast sample quantification in 3 seconds with the adjustable pathlength selector.



Dual Measurement Modes

Choose between micro volume and cuvette modes and take advantage of a full wavelength range from 190 to 1000 nm for a wide range of applications.



Flexible Data Management

EzDrop 1000C offers both standalone and PC compatibility for a versatile sample-to-data process.

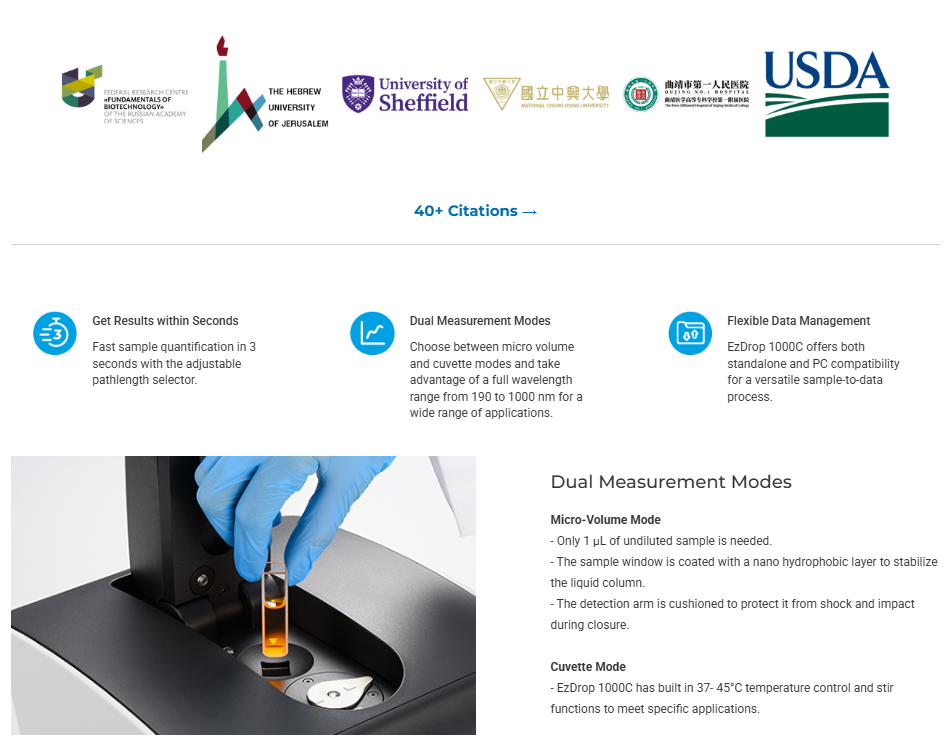

Dual Measurement Modes

Micro-Volume Mode
– Only 1 μL of undiluted sample is needed.
– The sample window is coated with a nano hydrophobic layer to stabilize the liquid column.
– The detection arm is cushioned to protect it from shock and impact during closure.

Cuvette Mode
– EzDrop 1000C has built in 37- 45°C temperature control and stir functions to meet specific applications.

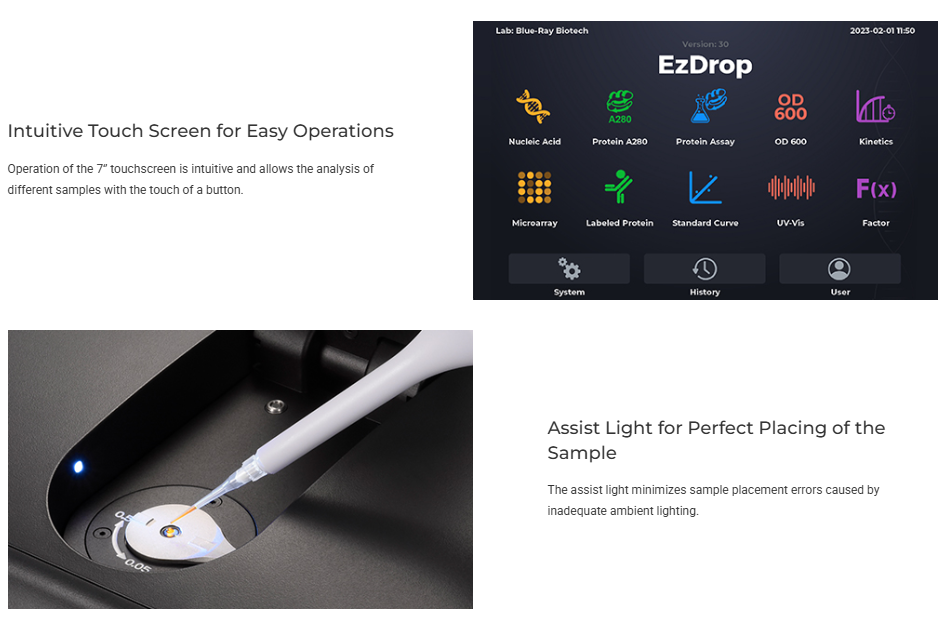

Intuitive Touch Screen for Easy Operations

Operation of the 7‘’ touchscreen is intuitive and allows the analysis of different samples with the touch of a button.

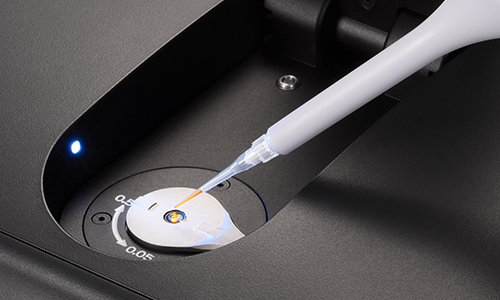

Assist Light for Perfect Placing of the Sample

The assist light minimizes sample placement errors caused by inadequate ambient lighting.

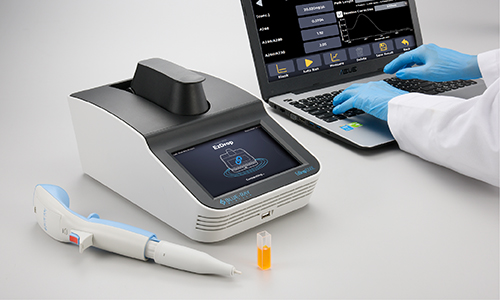

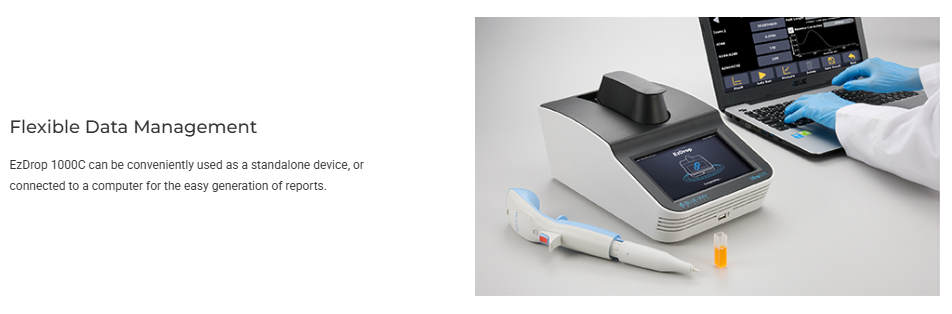

Flexible Data Management

EzDrop 1000C can be conveniently used as a standalone device, or connected to a computer for the easy generation of reports.

Applications

A wide variety of sample quantification applications include:



  • Nucleic acid and protein analysis
  • OD600 measurement
  • Microarray and labeled protein analysis
  • Kinetics
  • Full spectrum scans

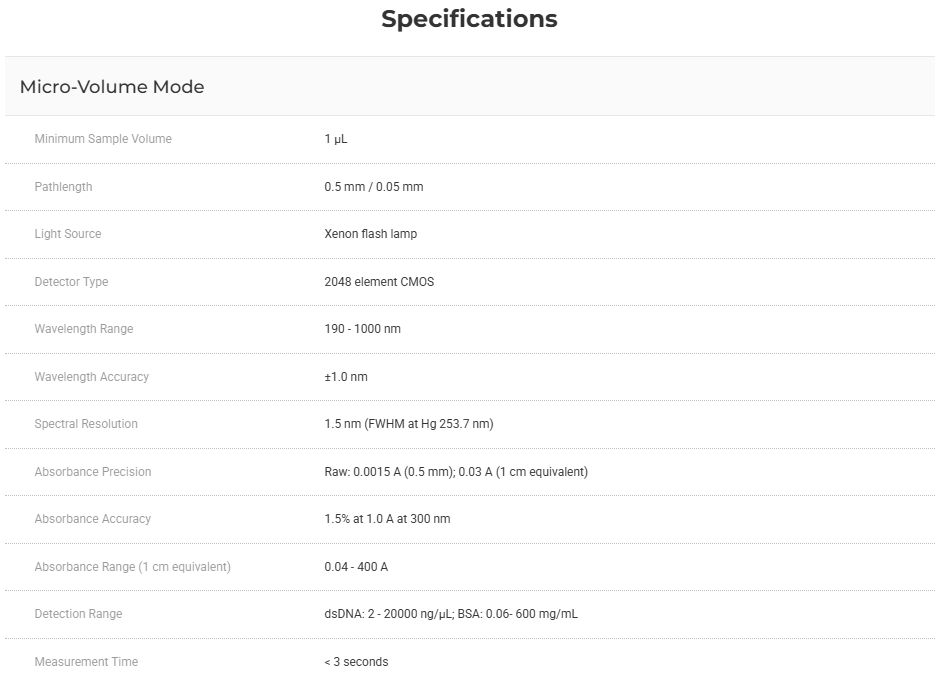

Specifications

 Micro-Volume Mode

  • Minimum Sample Volume
  • 1 µL
  • Pathlength
  • 0.5 mm / 0.05 mm
  • Light Source
  • Pulsed Xenon flash lamp
  • Detector Type
  • 2048 element CMOS
  • Wavelength Range
  • 190 – 1000 nm
  • Wavelength Accuracy
  • ±1.0 nm
  • Spectral Resolution
  • 1.5 nm (FWHM at Hg 253.7 nm)
  • Absorbance Precision
  • Raw: 0.0015 A (0.5 mm); 0.03 A (1 cm equivalent)
  • Absorbance Accuracy
  • 1.5% at 1.0 A at 300 nm
  • Absorbance Range (1 cm equivalent)
  • 0.04 – 400 A
  • Detection Range
  • dsDNA: 2 – 20000 ng/µL; BSA: 0.06- 600 mg/mL
  • Measurement Time
  • < 3 seconds

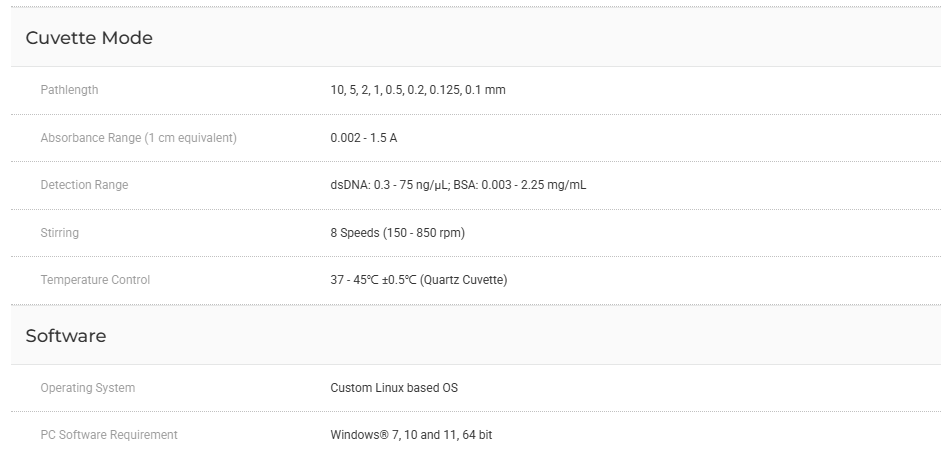

Cuvette Mode

  • Pathlength
  • 10, 5, 2, 1, 0.5, 0.2, 0.125, 0.1 mm
  • Absorbance Range (1 cm equivalent)
  • 0.002 – 1.5 A
  • Detection Range
  • dsDNA: 0.3 – 75 ng/µL; BSA: 0.003 – 2.25 mg/mL
  • Stirring
  • 8 Speeds (150 – 850 rpm)
  • Temperature Control
  • 37 – 45℃ ±0.5℃ (Quartz Cuvette)

Software

  • Operating System
  • Custom Linux based OS
  • PC Software Requirement
  • Windows® 7 and 10, 64 bit

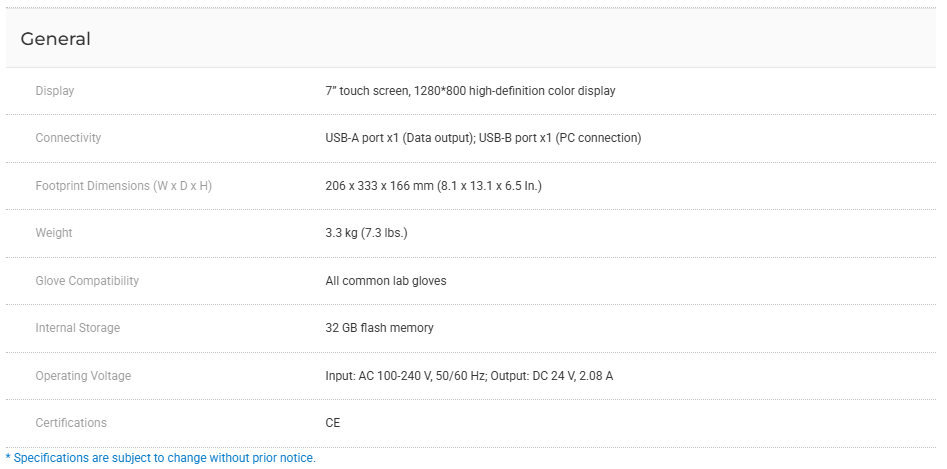

General

  • Display
  • 7” touch screen, 1280*800 high-definition color display
  • Connectivity
  • USB-A port x1 (Data output); USB-B port x1 (PC connection)
  • Footprint Dimensions (W x D x H)
  • 206 x 333 x 166 mm (8.1 x 13.1 x 6.5 In.)
  • Weight
  • 3.3 kg (7.3 lbs.)
  • Glove Compatibility
  • All common lab gloves
  • Internal Storage
  • 32 GB flash memory
  • Operating Voltage
  • Input: AC 100-240 V, 50/60 Hz; Output: DC 24 V, 2.08 A
  • Certifications
  • CE, UKCA

DOWNLOAD BROCHURE

Available Options

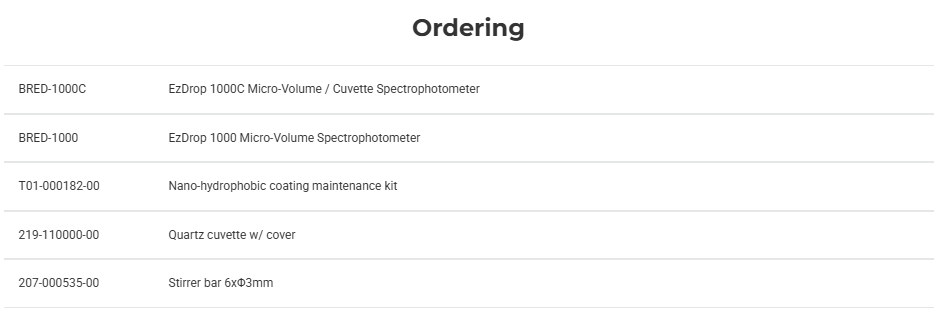

ThumbnailSKUDescriptionStockPriceQuantity
