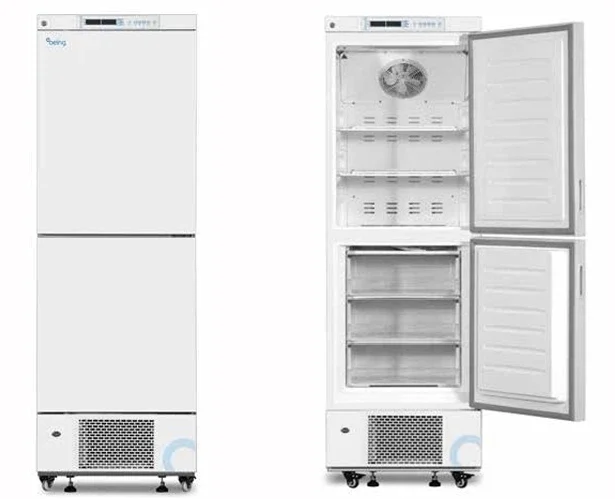

Combined Refrigerator And Freezer

Suitable for hospital, disease control and prevention center, electronics, chemicals, R&D, laboratory; food processing, Also can be used to store drugs, regents, biological products, vaccines, blood, etc.

Product Details

Application

Suitable for pharmacy, pharmaceutical factory, hospital, clinic, disease control and prevention center, it is a professional equipment for refrigerating medicine. Suitable for hospital, disease control and prevention center, electronics, chemicals, R&D, laboratory, food processing Can be used for electronics, chemicals, R&D, laboratory of university, food processing. Also can be used to store biological product, reagent, vaccine, etc.

Cooling System

● Temperature Range: 2℃~8℃, -10℃~-25℃.

● Microprocessing controller, LED display, temperature adjustment and display accuracy is 0.1℃.

● The outer door adopts unique sealing structure, which can ensure the freezer with good sealing and heat preservation performance.

● The upper and lower storage spaces with two completely independent cooling system, temperature control and display.

● The refrigerator adopts fan motor with more safe and can keep lubrication permanently, so it can be used longer.

● The forced air cooling circulation of the refrigerator can keep the temperature inside the chamber stable and unified, also can make the temperature quickly recover after outer door closed.

● Compressors are efficient and reliable.

Safety

● Build-in back-up battery to display temperature and alarm information for up to 8 hours, if AC power is failure.

● With high/low temperature alarm, sensor failure alarm, power failure alarm, door ajar alarm. Two ways of alarm: visual and audible.

● Button on the control panel can be locked to avoid setting parameters being changed due to misoperation.

● With compressor delay start protection function when power off restart.

● Efficient and environmentally friendly HC refrigerant is used.

● Build-in mechanical lock to ensure the safety of storage.

● Safe mode will be ran automatically in case of sensor failure to ensure the temperature for storage.

Ease of Operation

● Buzzing alarm can also be set to mute if required.

● Standard testing ports for easy access to external test tools.

● Standard drawer and basket, easy to storage and management.

● The freezer has two storage spaces with different temperature ranges, up and down.

● The bottom is provided with leveling feet to ensure the levelness of the freezer body during installation.

● In case of failure, the control screen displays real-time temperature and corresponding alarm code, which is convenient for trouble shooting.

Technical Specification

Model	BDW-25L300RF
Temperature Range 〔℃〕	R: 2 – 8; F: -10 – -25
Effective Capacity 〔Liters〕	R: 200; F: 100
Exterior Dimensions 〔mm〕W x D x H	650x618x1974
Interior Dimensions 〔mm〕W1 x D1 x H1	R: 565 x 480 x 759; F: 461 x 465 x 600
Door Opening 〔mm〕W2 x H2	1277 x 1235
Insulation Thickness 〔mm〕	40 / 90
Exterior Finishing	White Plastic Coated Galvanised Steel
Interior Finishing	Blister
Shelves	2
Drawers	3
Levels	6
Mechanical Lock	Yes
Battery	Yes
Temperature Sensor in Chamber	Yes
Controller Type	Digital Screen
Refrigerant	HC
Voltage/Frequency〔V / Hz〕	AC220 / 50
Rated Power〔W〕	330
Net Weight〔kg〕	100
Power Failure Alarm	Yes
Temperature Sensor Failure Alarm	Yes
High/Low Temperature Alarm	Yes
Door Ajar Alarm	Yes
Temperature Resolution〔℃〕	0.1
Temperature Uniformity〔℃〕	≤2 / ≤4
Pull Down Time〔h〕	≤0.8 / ≤2.6
