2℃ ~8℃ Refrigerator Suitable for pharmacy, pharmaceutical factory, hospital, clinic, disease control and prevention center, it is a professional equipment for refrigerating medicine; Suitable for hospital, disease control and prevention center, electronics, chemicals, R&D, laboratory, food processing Can be used for electronics, chemicals, R&D, laboratory of university, food processing. Also can be used to store biological product, reagent, vaccine, etc.. processing. Also can be used to store
Applications
Medical, Reagents, Biological, Vaccine, Blood Samples; Suitable for Medical, Electronics, Chemicals, R&D, University Research, Food Process.
Cooling System
● Temperature Range: 2℃ ~8℃.
● Microprocessing controller, LED display, temperature adjustment and display accuracy is 0.1℃.
● Adoption fan motor with more safe and can keep lubrication permanently, so it can be used longer.
● The forced air cooling circulation of the refrigerator can keep the temperature inside the chamber stable and unified, also can make the temperature quickly recover after outer door closed.
● Compressors are efficient and reliable.
Safety
● Build-in back-up battery to display temperature and alarm information for up to 8 hours, if AC power is failure.
● With high/low temperature alarm, sensor failure alarm, power failure alarm, door ajar alarm. Two ways of alarm: visual and audible.
● Button on the control panel can be locked to avoid setting parameters being changed due to misoperation.
● With compressor delay start protection function when power off restart.
● The magnetic sealing door closes automatically, ensuring better insulation.
● Efficient and environmentally friendly HC refrigerant is used.
● Build-in mechanical lock to ensure the safety of storage.
● Safe mode will be ran automatically in case of sensor failure to ensure the temperature for storage.
Ease of Operation
● No need for defrosting.
● Build-in LED light for easy observation.
● Standard testing ports for easy access to external test tools.
● Double transparent glass door is facilitate observation of storage.
● Each floor is equipped with identification cards to facilitate the management of storage.
● This refrigerator size is small, easy to use, can be placed on or under table.
● The bottom is provided with leveling feet to ensure the levelness of the freezer body during installation.
● The condensed water can be collected automatically, then evaporates naturally in the water box, without any manual treatment.
● The control panel is equipped with an build-in LED light switch, which is convenient to turn on the light when needed.
● In case of failure, the control screen displays real-time temperature and corresponding alarm code, which is convenient for trouble shooting.
Technical Specification

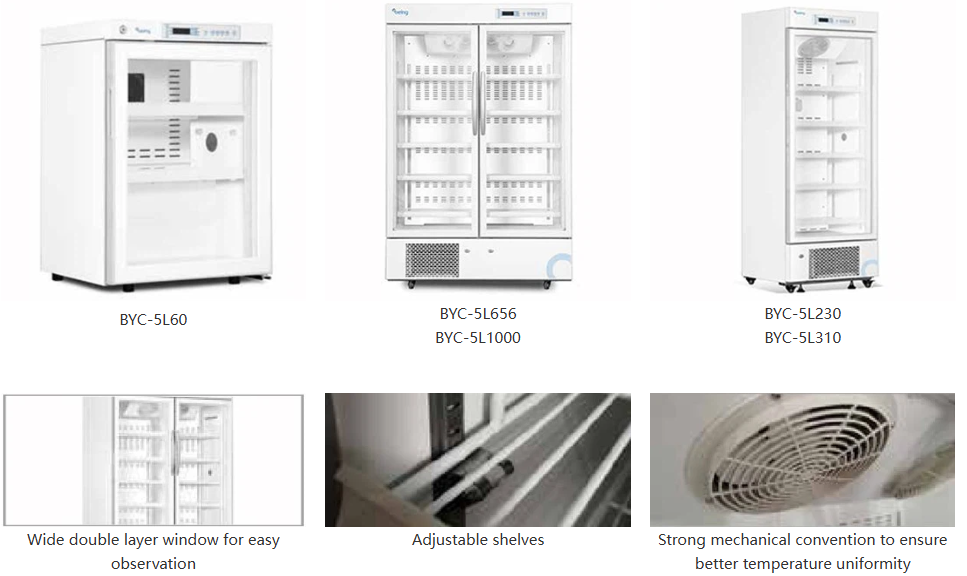

| Model | BYC-5L60 | BYC-5L230 | BYC-5L310 | BYC-5L656 | BYC-5L1000 |
| Temperature range〔℃〕 | 2 – 8 | ||||
| Effective volume 〔Liters〕 | 60 | 230 | 310 | 656 | 1000 |
| Exterior dimensions W x D x H〔mm〕 | 490 x 441 x 710 | 625 x 594 x 1707 | 640 x 553 x 1880 | 1220 x 642 x 1885 | 1220 x 872 x 1885 |
| Interior dimensions W1 x D1x H1〔mm〕 | 410 x 315 x 560 | 534 x 406 x 1150 | 540 x 425 x 1380 | 1100 x 454 x 1325 | 1100 x 684 x 1325 |
| Door opening W2 x H2〔mm〕 | 949x 896 | 1219 x 1152 | 1250 x 1160 | 2367 x 1160 | 2367 x 1390 |
| Insulation thickness〔mm〕 | 40 | 45 | 50 | 60 | |
| Exterior finishing | White plastic coated galvanised steel | ||||
| Interior finishing | White plastic coated galvanised steel | ||||
| Shelves | 2 | 4 | 5 | 10 | 10 |
| Levels | 3 | 4 | 5 | 10 | 10 |
| Mechanical lock | Yes | ||||
| Battery | Yes | ||||
| Interior chamber temperature probe | Yes | ||||
| Controller type | LED | ||||
| Refrigerant type | HC | ||||
| Voltage/Frequency〔V / Hz〕 | AC220 / 50 | ||||
| Power〔W〕 | 72 | 140 | 215 | 310 | 310 |
| Net Weight 〔kg〕 | 33 | 73 | 92.5 | 158 | 207 |
| Power failure alarm | Yes | ||||
| Temperature sensor failure alarm | Yes | ||||
| High / Low temperature alarm | Yes | ||||
| Door ajar alarm | Yes | ||||
| Ttemperature resolution〔℃〕 | 0.1 | ||||
| Temperature uniformity〔℃〕 | ≤2 | ||||
| Cooling Time〔h〕 | ≤0.8 | ||||
| Certification | – | – | CE / RoHS | ||
●All test data are tested in a 25°C environment
