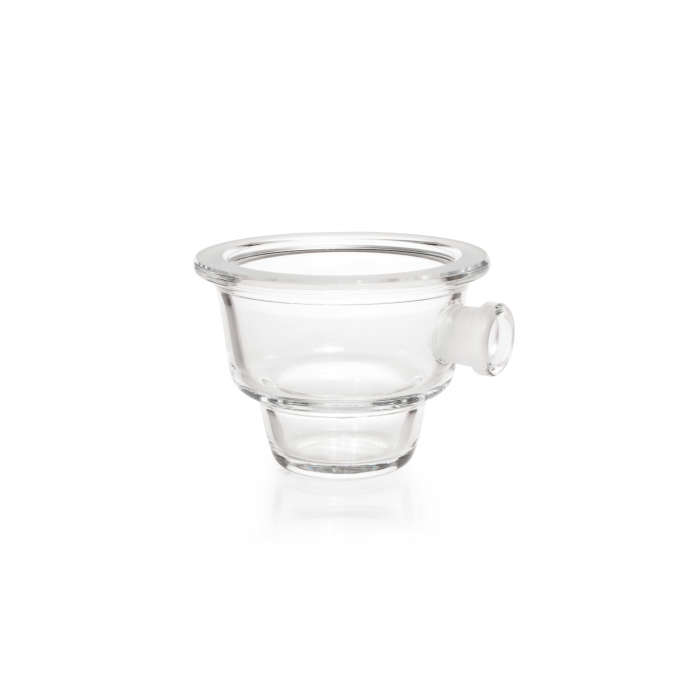

General Glassware DURAN® Desiccator Base, NOVUS type, with standard ground outlet (NS 24/29)

SKU: N/A Categories: ,
  •  > Complies with DIN ISO 13130
  •  > Manufactured from borosilicate glass 3.3
  •  > Tight closure due to standard ground joint
  •  > NOVUS type with standard ground joint (NS 24/29) junction tube in the lid
  •  > With flat flange
  •  > Suitable for all types of lids



Product Overview

The DURAN® desiccator is a vacuum-suitable laboratory vessel with a ground lid, which is used for storing moisture-sensitive substances and for drying moist products. Separated by a sieve plate (made of metal or porcelain), a drying agent is introduced into the lower part of the desiccator base, which binds the moisture of the substance to be dried, placed on the sieve plate. To accelerate the drying process, a vacuum can be connected if necessary, as the liquid evaporates faster due to a lower pressure in the desiccator. The vacuum is applied via a shut-off valve connection. To facilitate loosening of the lid, the surface grinding of the desiccator must be well greased, since after evacuation the lid is pressed onto the lower part. All DURAN® desiccators are vacuum-resistant, i.e. they can be used up to the technically maximum possible vacuum.

Specification

Catalog No DN ID Flange (mm) Flange OD (mm) Height h (mm) Height h1 (mm) Quantity
